Nancy's Framing

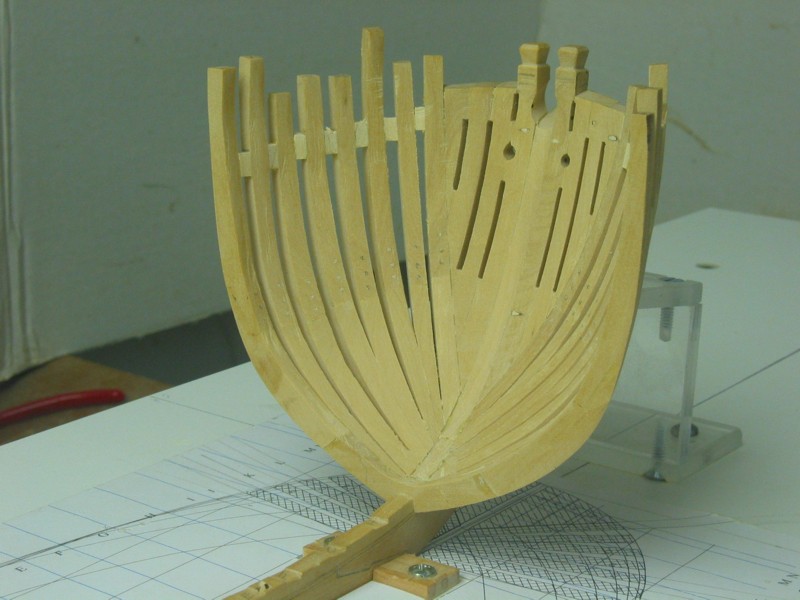

Interior of forward cant frames

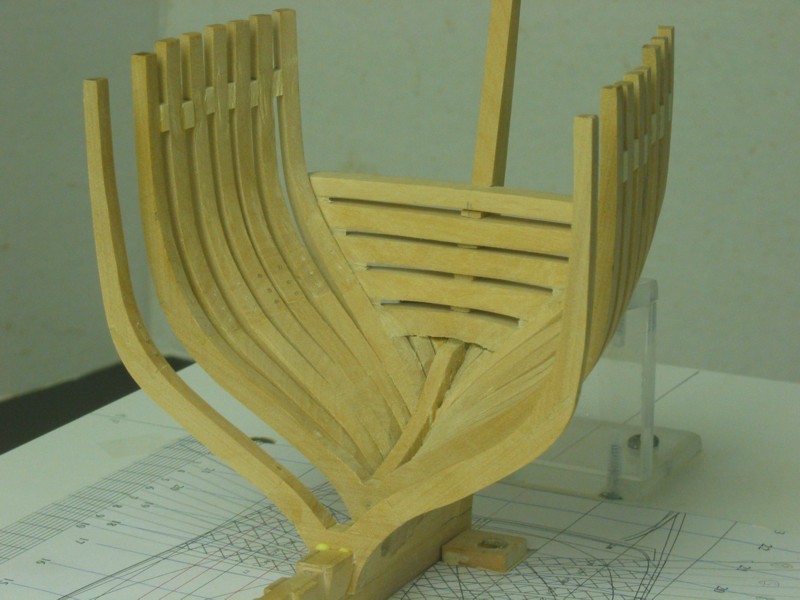

Interior of aft cant frames

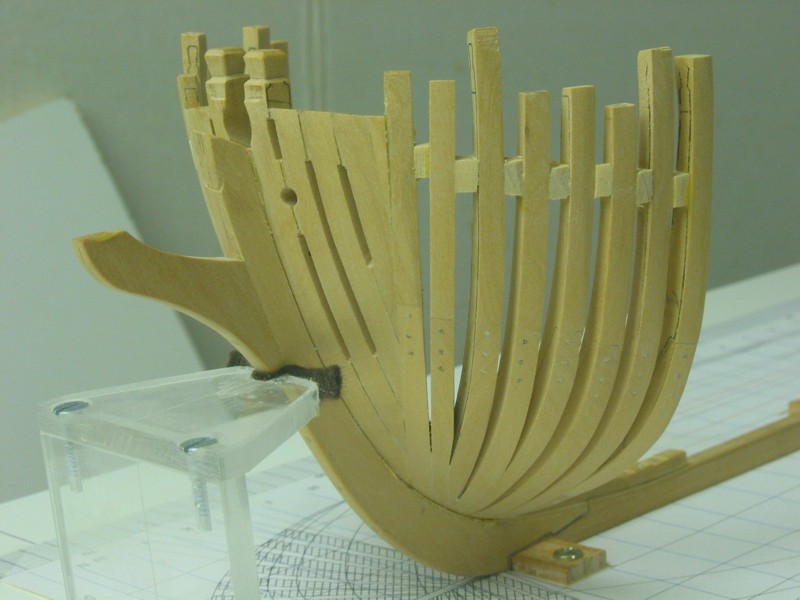

Exterior of forward cant frames

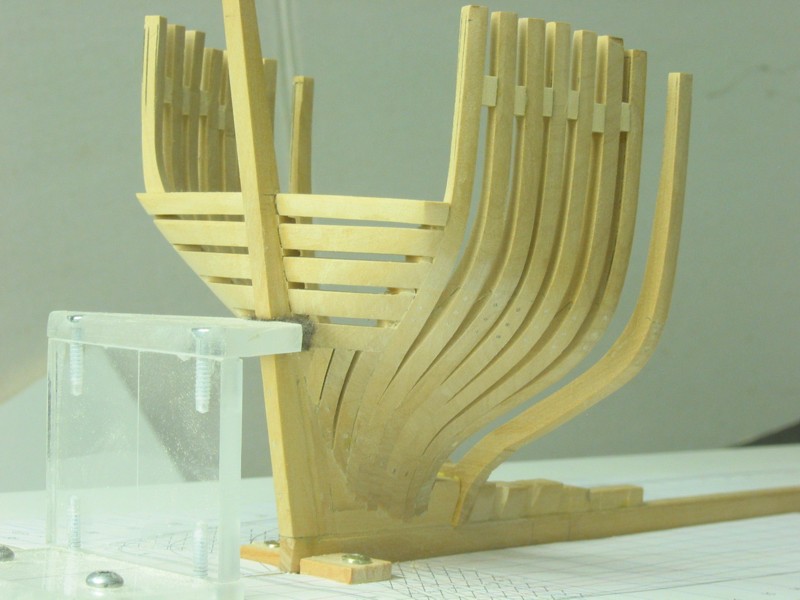

Exterior of aft cant frames and transoms



On April 14, 2006 the framing of the Nancy was complete.  This includes the cant frames, shown previously, the square frames along the keel, the gun port and port lights and the stern timbers.  The light coloured spacers between the frames will be removed when there are sufficient longitudinal pieces in place to secure the frames.

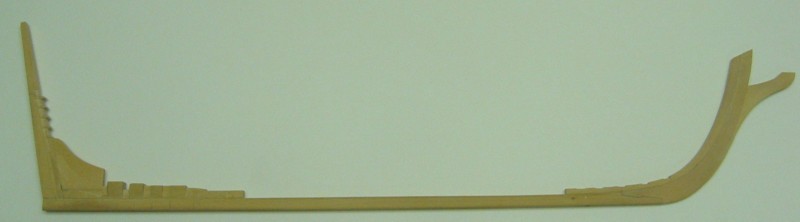

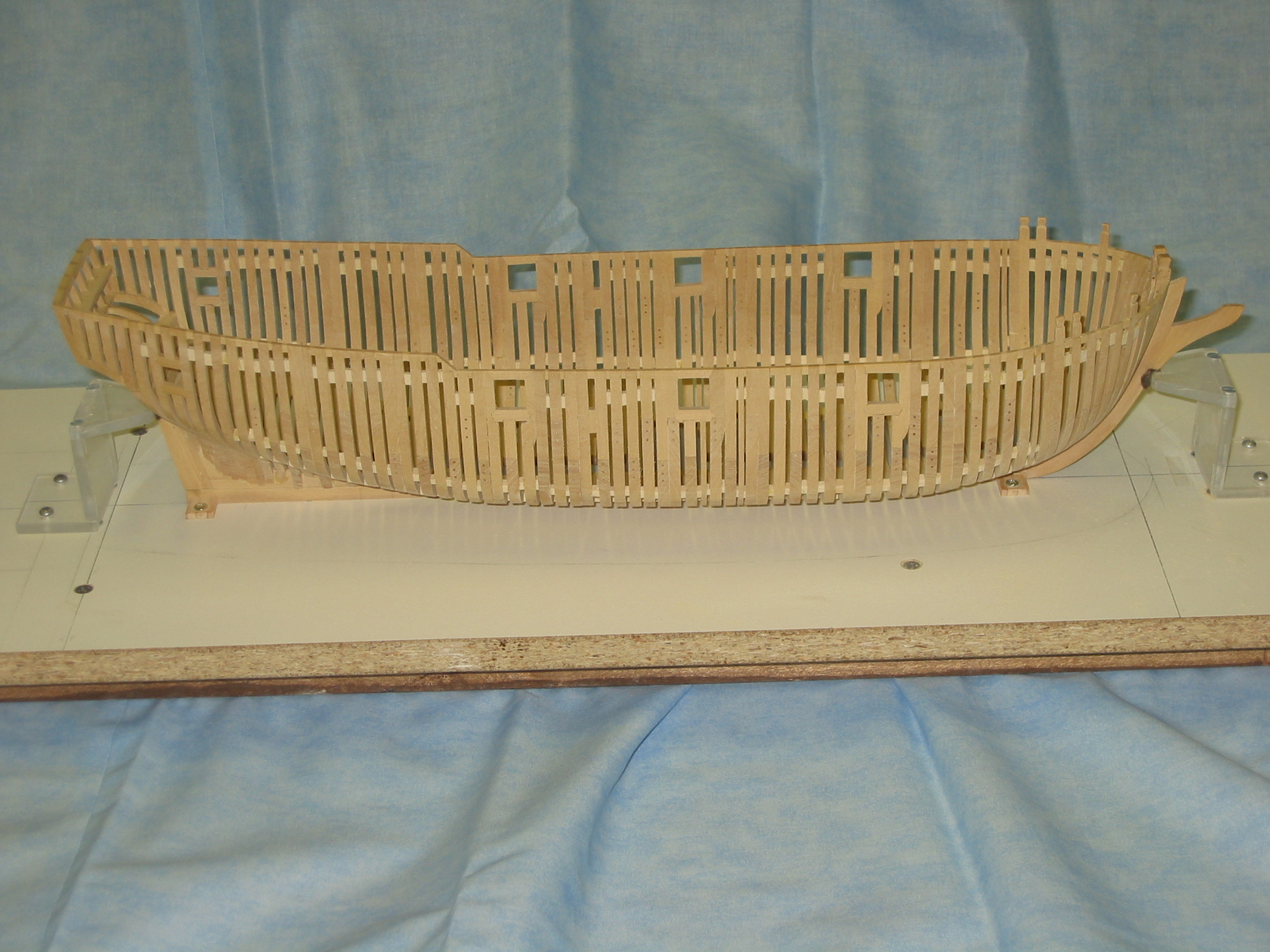

Profile view

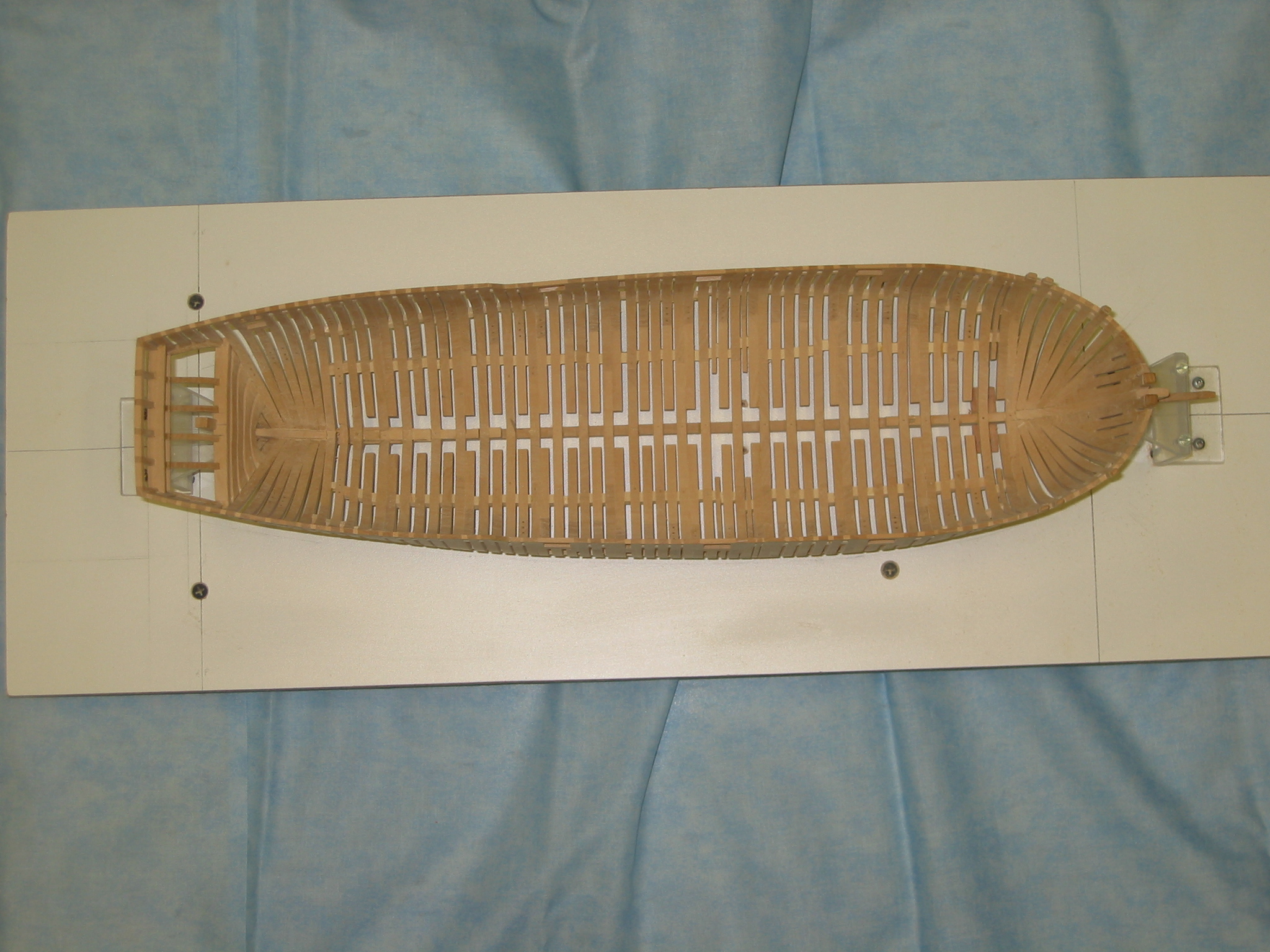

View from above

To see high resolution images of these pictures click on the icons below.
