Photo Gallery of the SS Northcote model

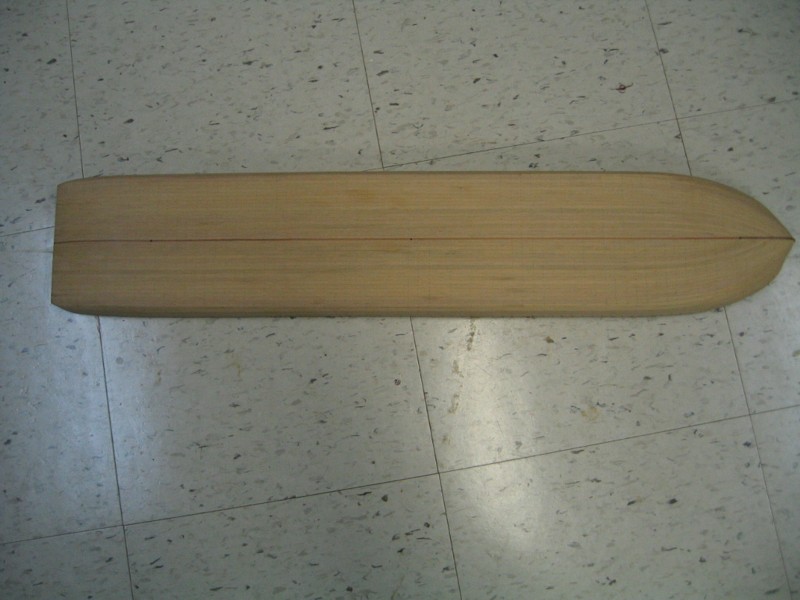

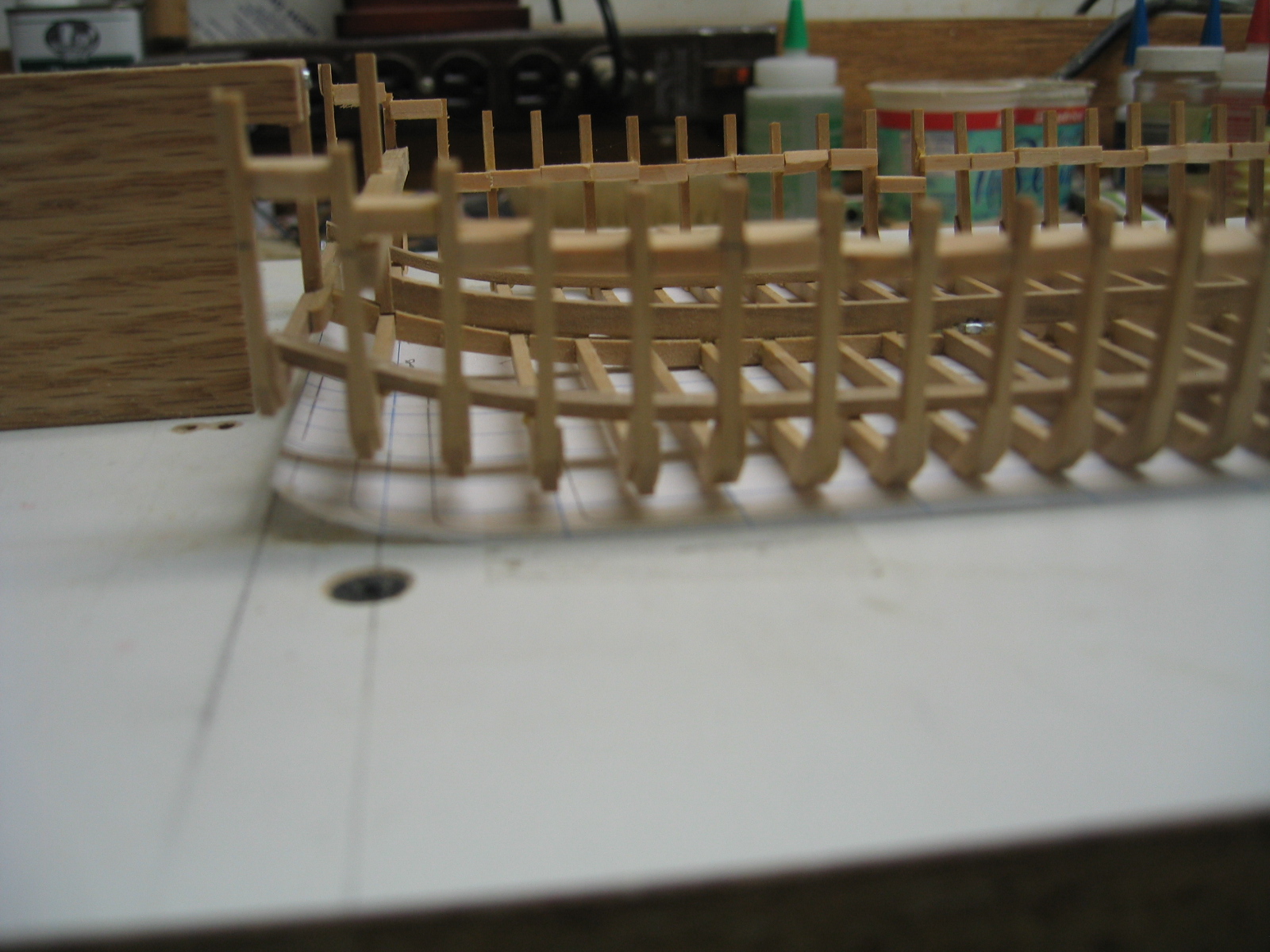

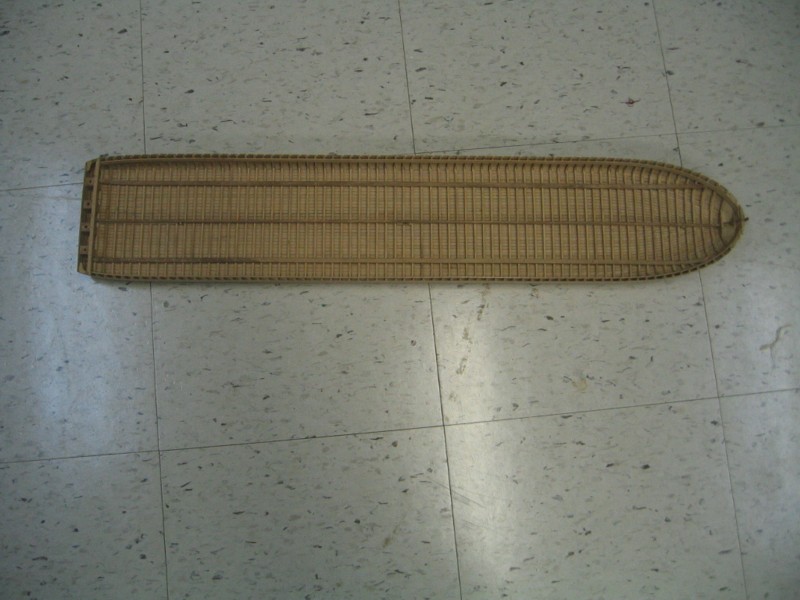

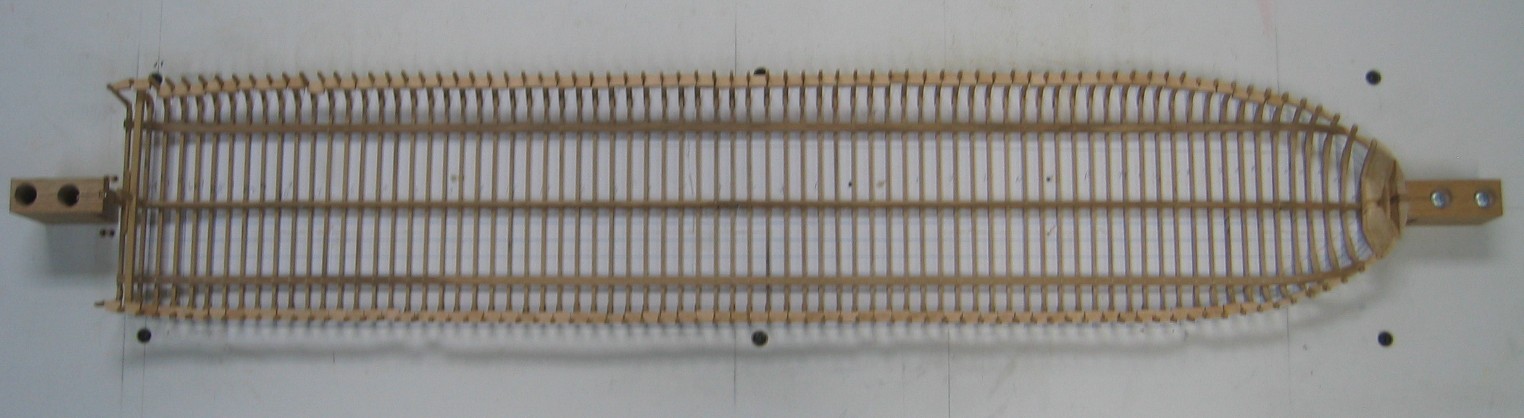

Framing from above.

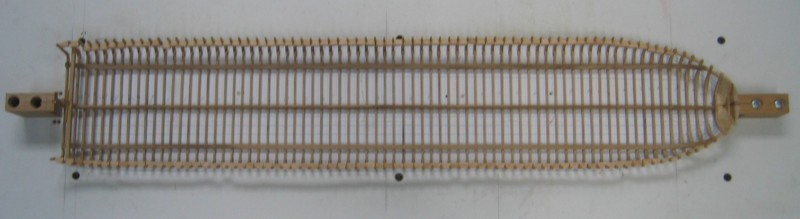

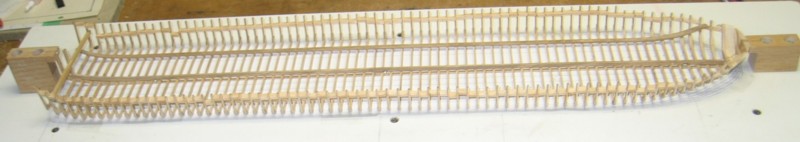

Framing

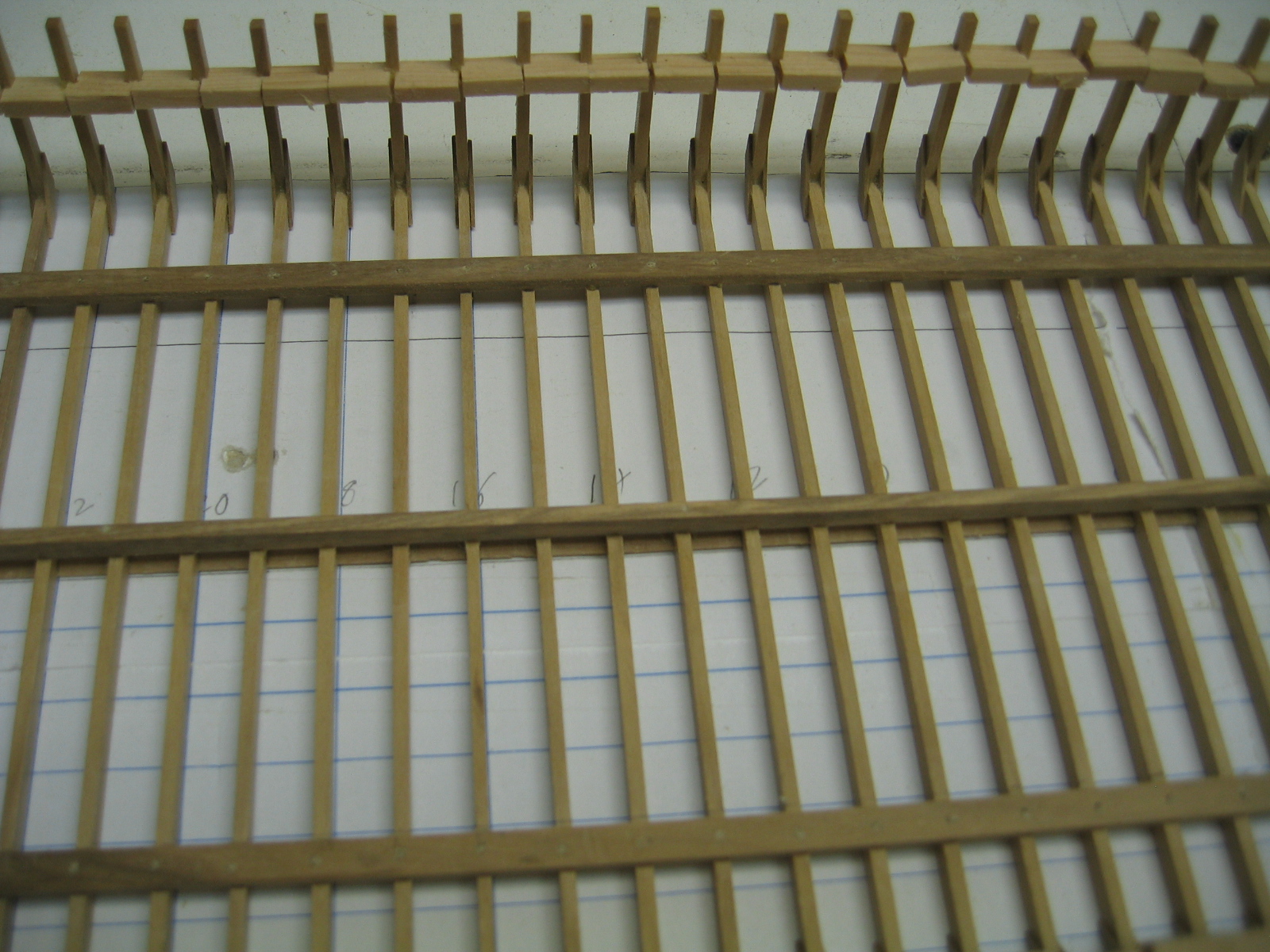

Close-up of framing amidships.  The ship was lightly built, to minimize its weight, so was prone to hogging.  To prevent hogging there were three keelsons.  The center one will have a bulkhead which reached up to the deck beams.  The outer keelsons also had a bulkhead sitting on them as well as a system of beams and cables which lifted the portion of the hull under the engines and boilers and forced down the portions of the hull between the heavy equipment.  These beams and cables also took the weight of the paddle wheel at the stern.

Notice how the floor timbers were joined to the side timbers.  This was normal in these ships.

The blocks between the timbers are there to hold the frames in place until planking is installed.  The blocks will be removed.

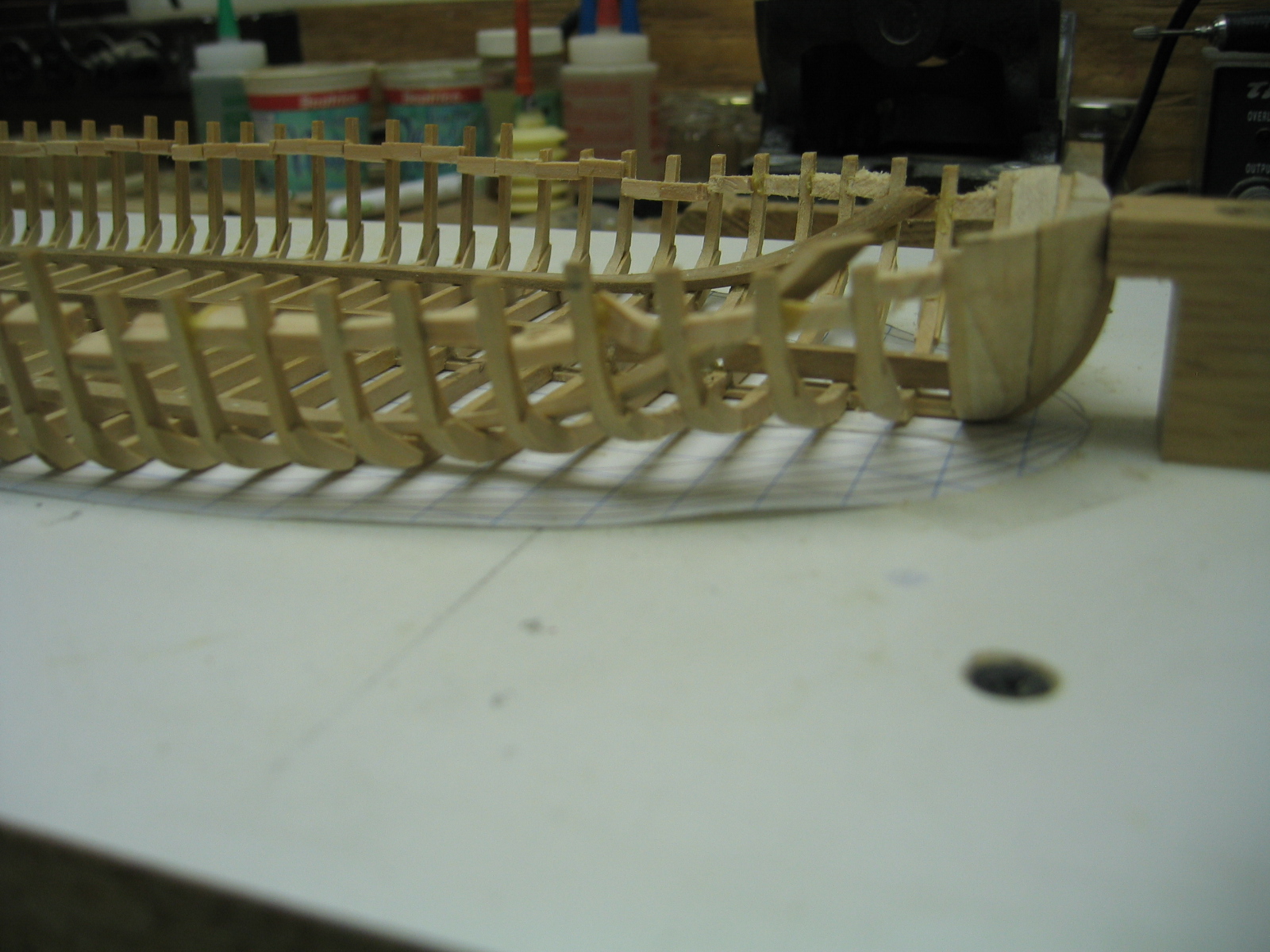

Frames at bow.

Frames at stern.



Click on thumbnail to see high resolution image.

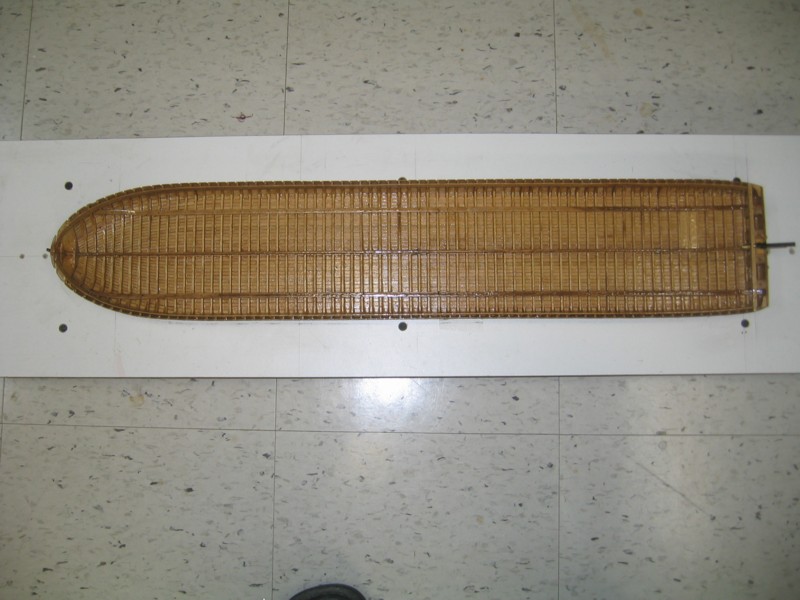

Interior of planked model

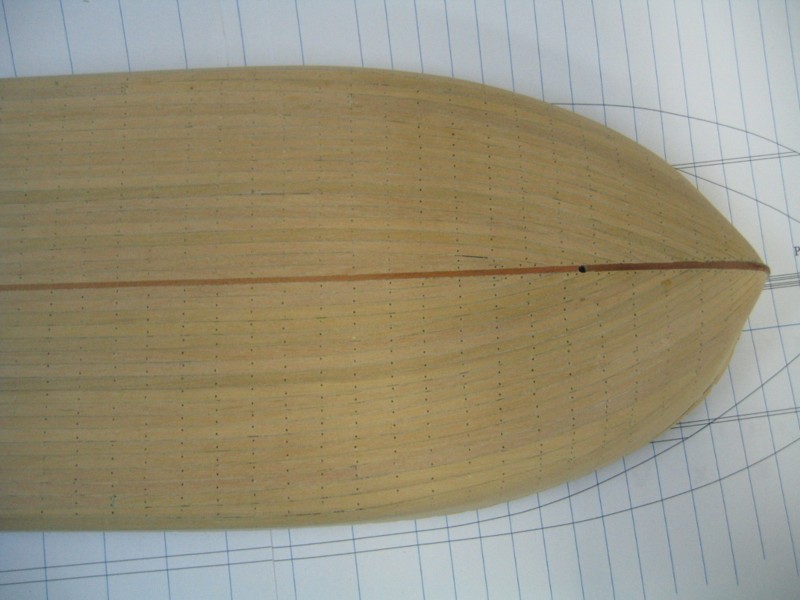

Exterior of planked hull



Treenails that replicate nails used to hold planking in place on original vessel.

Interior of hull coated with epoxy to make it water proof

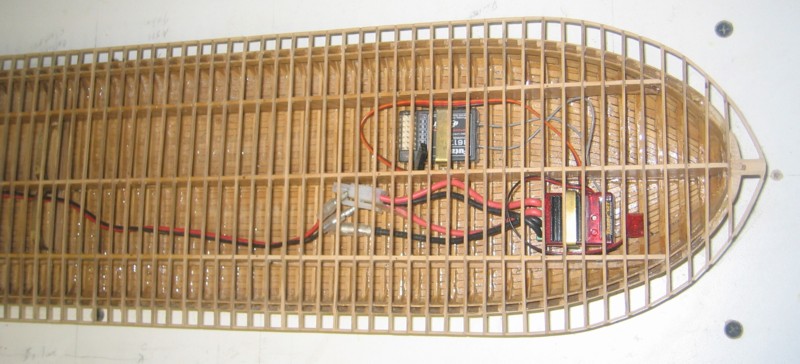

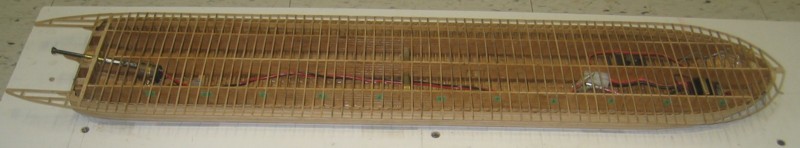

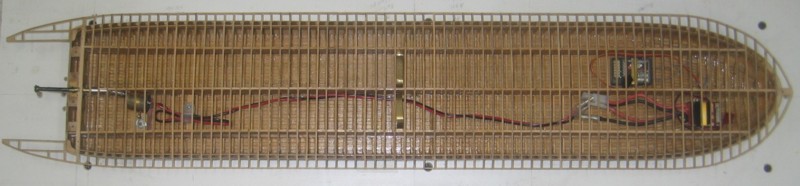

Deck framing and RC controls

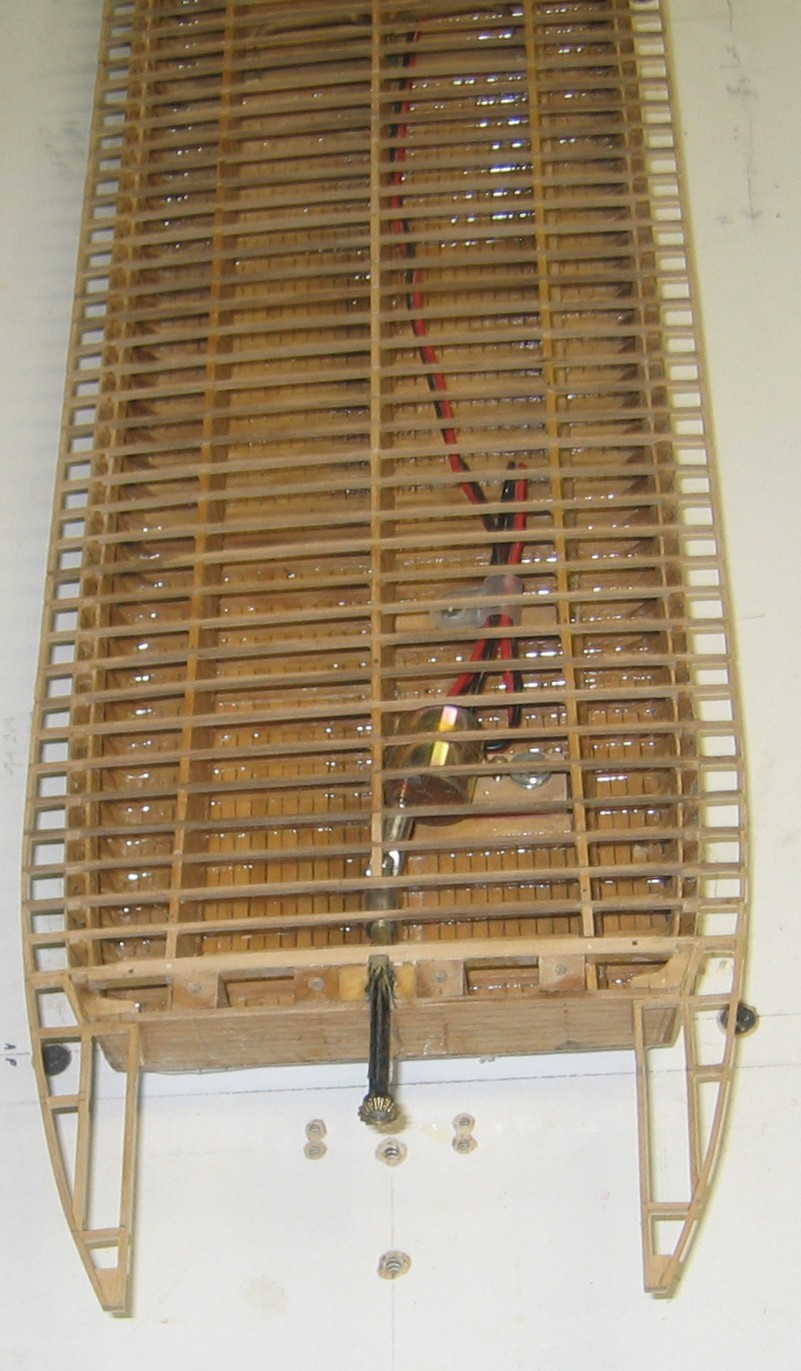

Motor and drive gear for paddle wheel

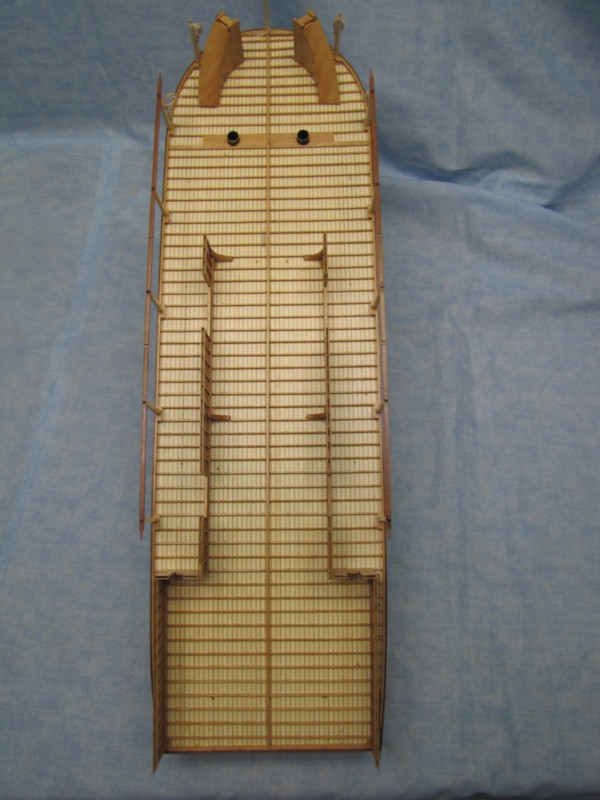

Deck framing



Deck framing

Boiler deck framing and start of planking.

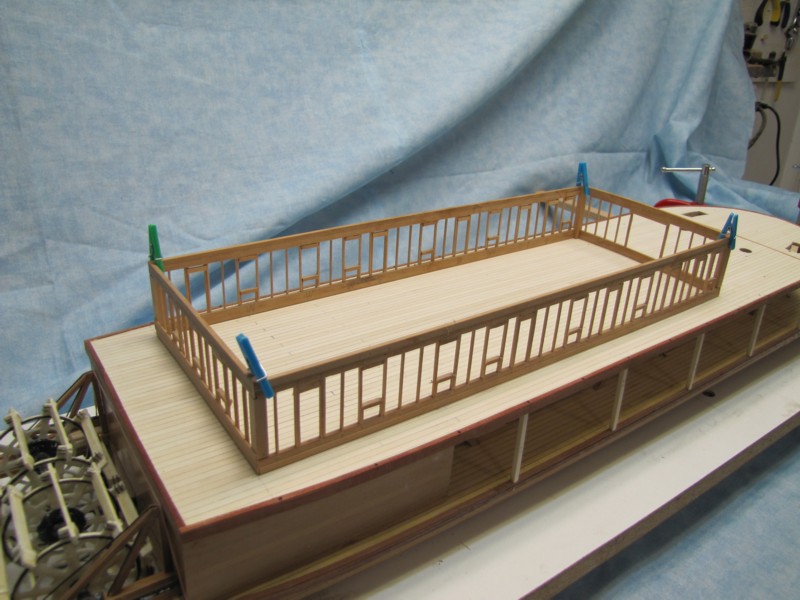

Framing of cabin walls.



Cabin walls laying on deck and ready to fix in place.



Profile of superstructure.

      Click on image to see high resolution picture.

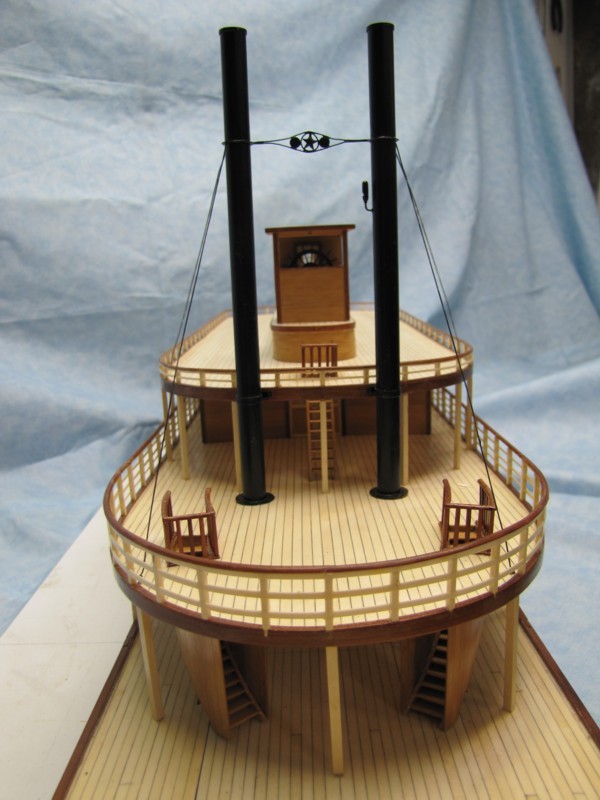

View from the bow showing the ladders between decks

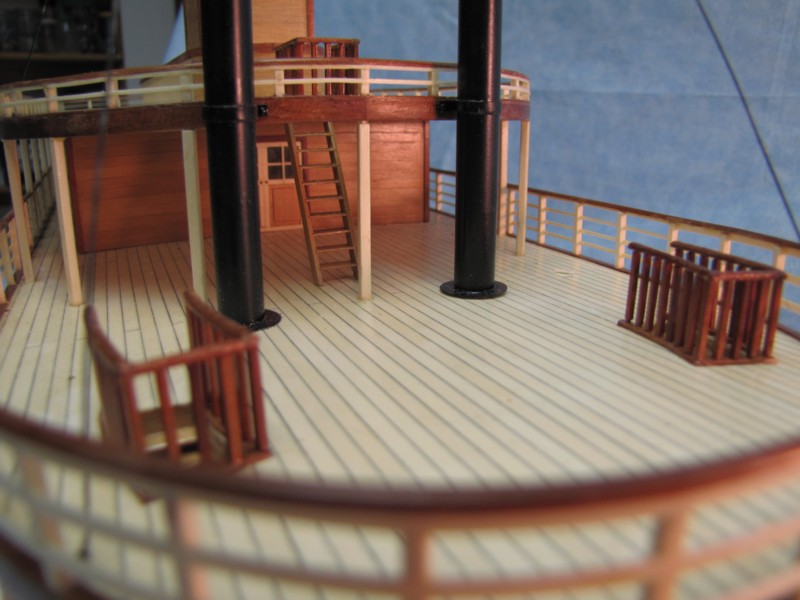

Forward cabin wall, stacks coming through boiler deck and railings around ladders from main to boiler decks.



Texas deck and wheelhouse.

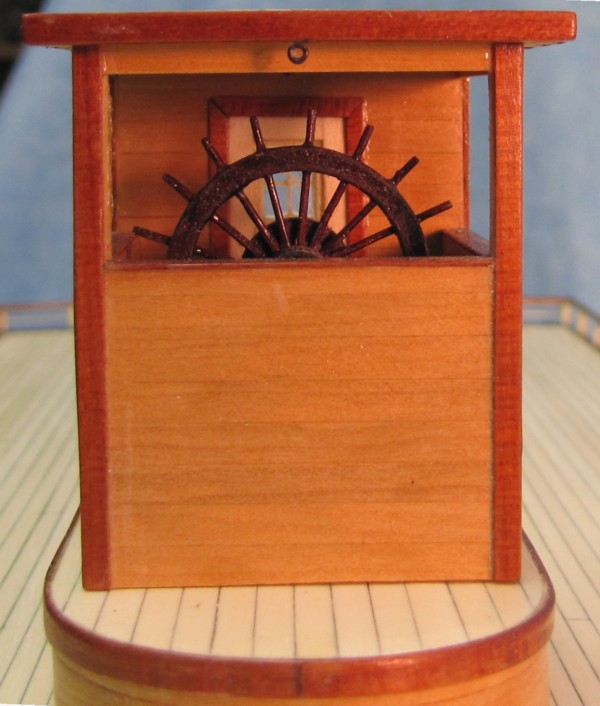

Wheelhouse and wheel.



View of forward part of the boat looking aft.



Boiler and stacks.



Side view if boilers.

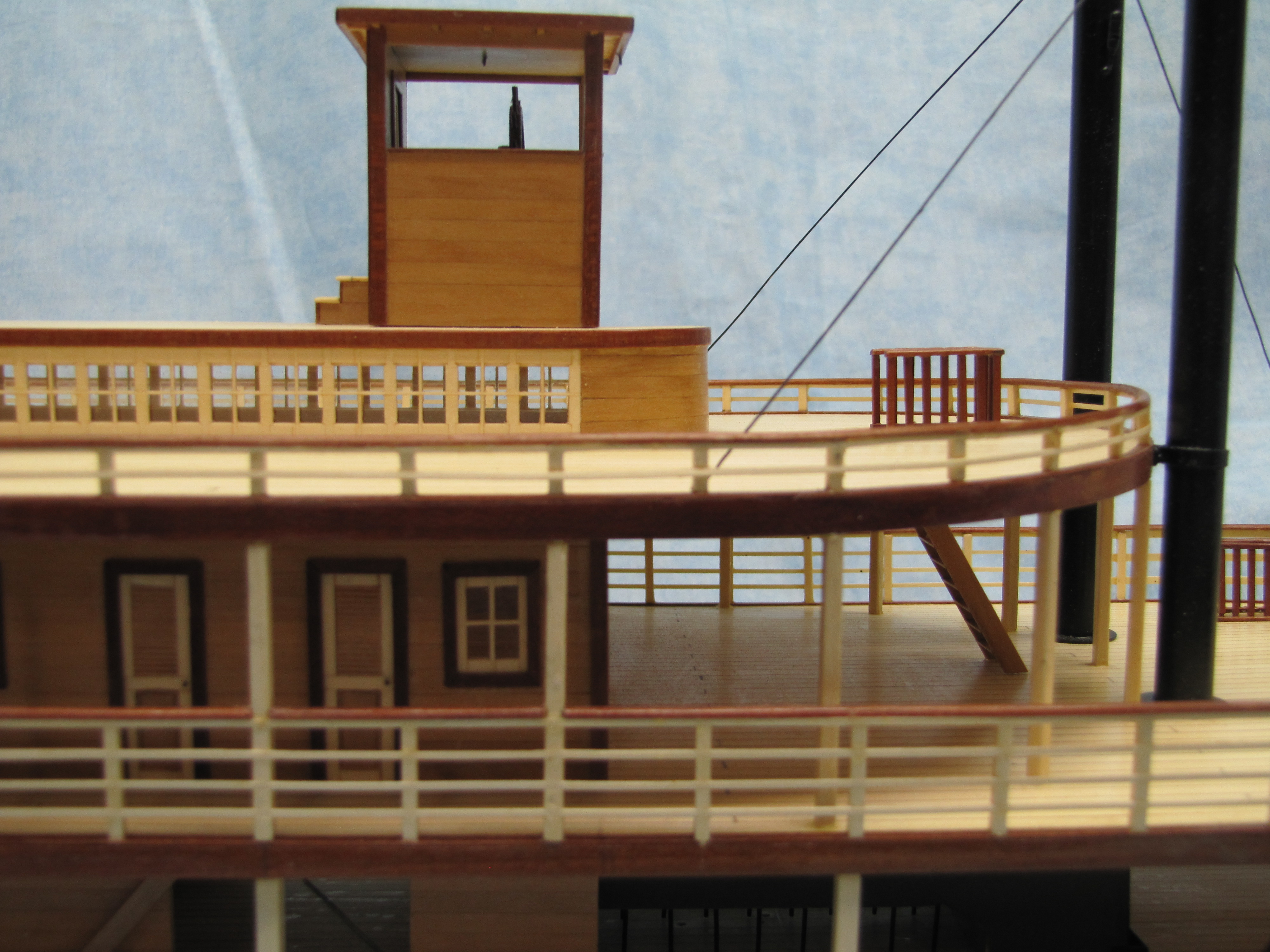

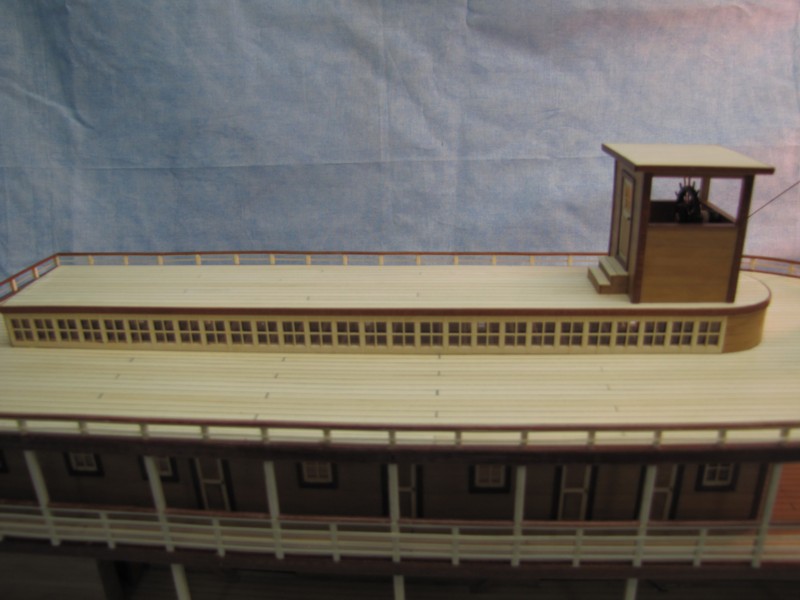

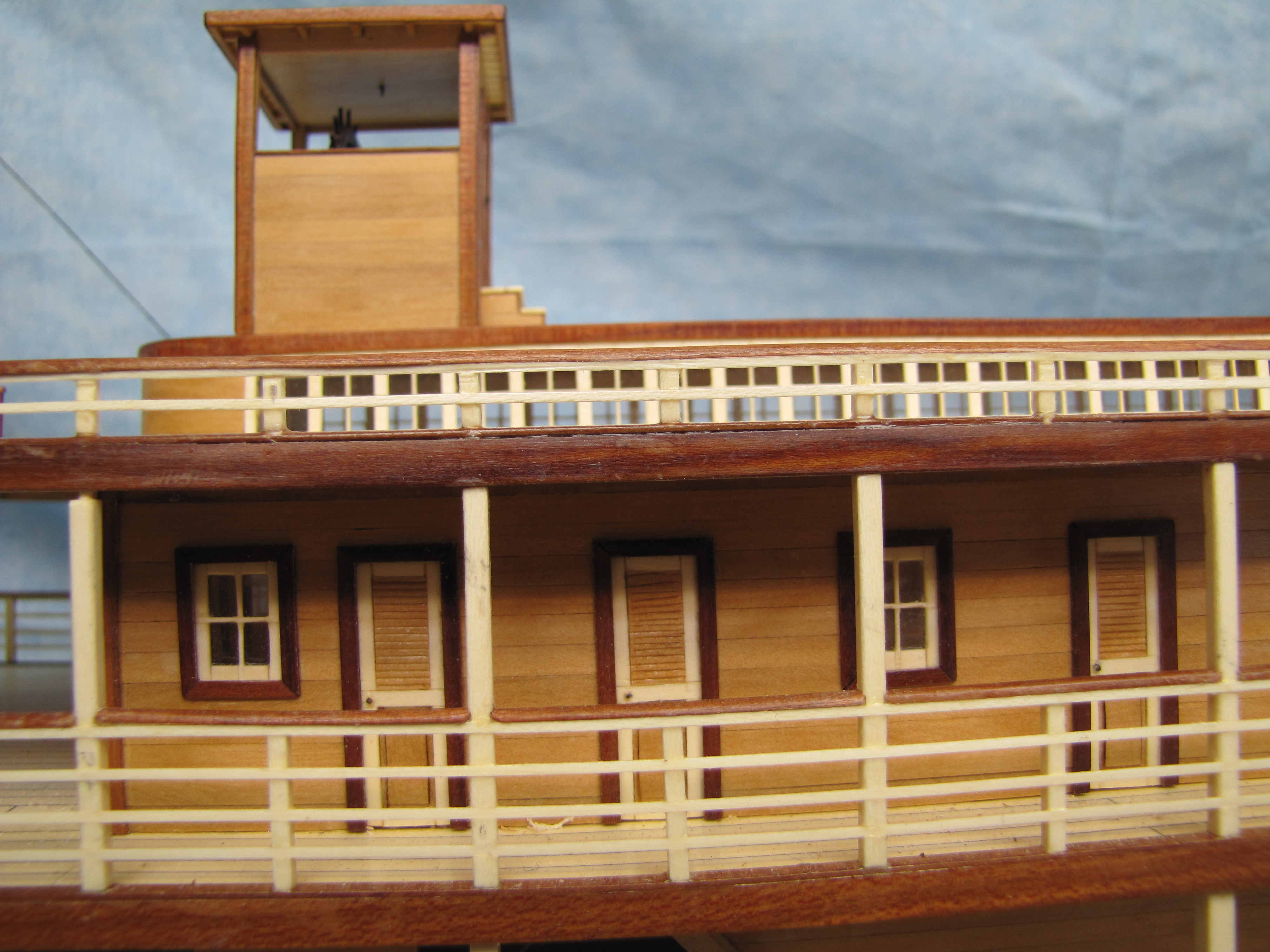

Forward cabins and wheelhouse.



  Click on image to see high resolution picture.

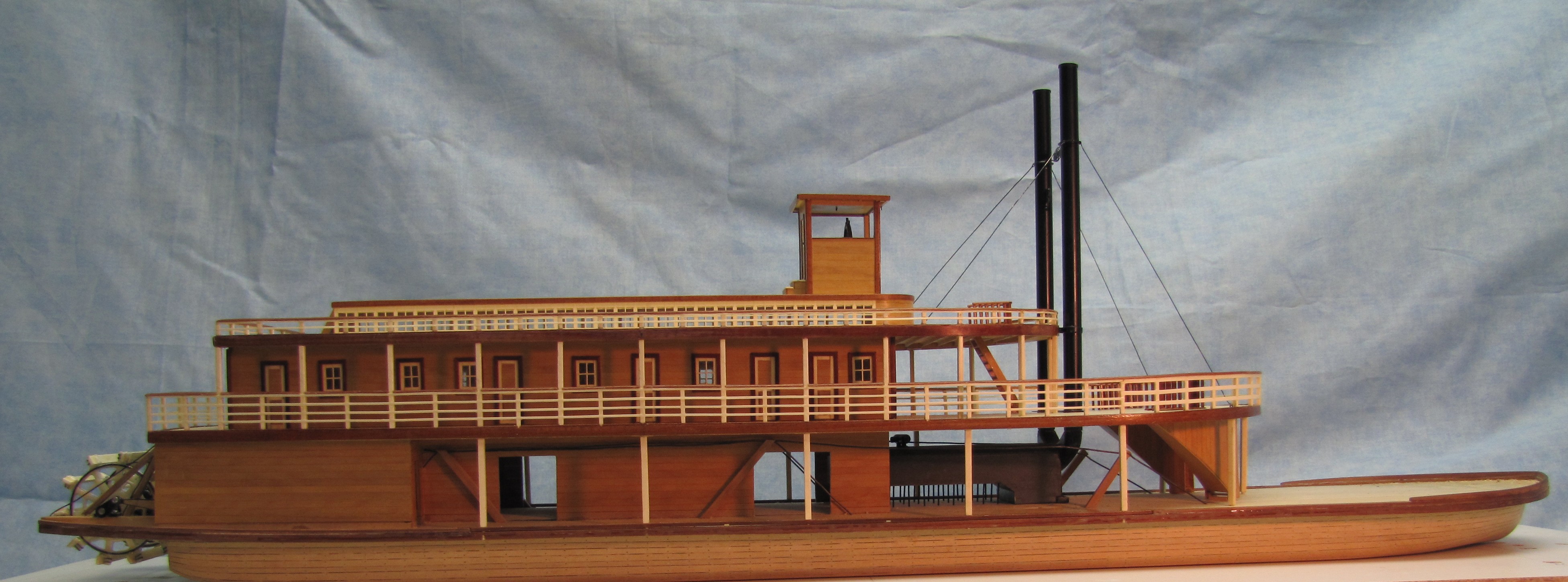

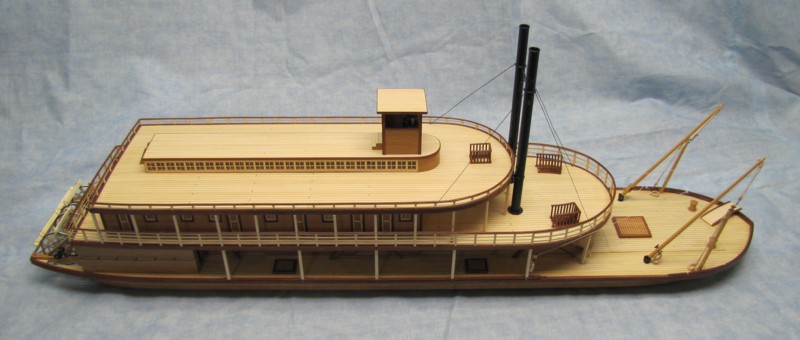

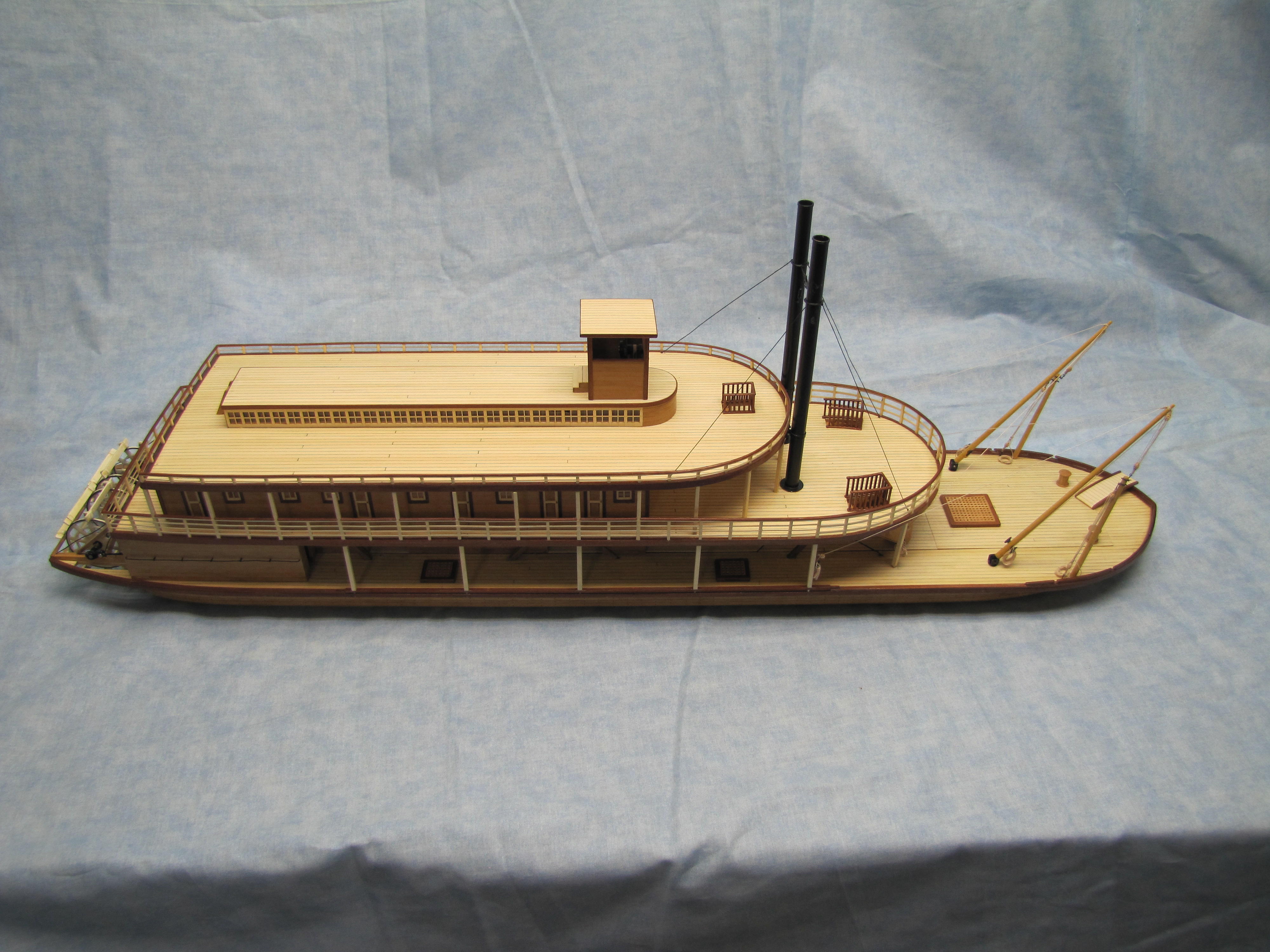

Profile of completed model.  September 20, 2011.



     Click on image to see high resolution picture.

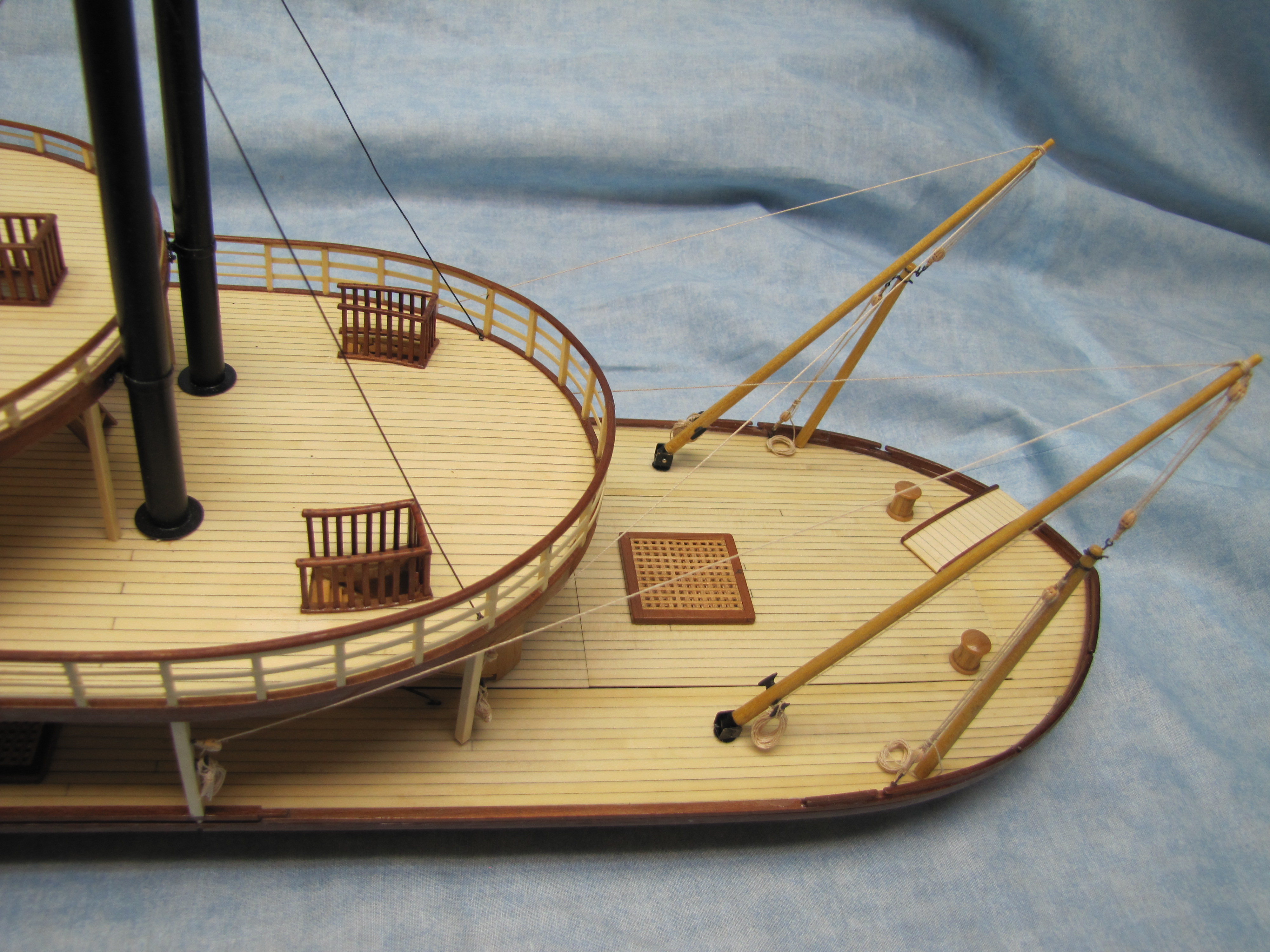

Bows showing cranes and capstans.  The poles hanging from the cranes would be lowered over the side and used to lift the bow off of a sandbar should the boat run up on one.

   Click on image to see high resolution picture.

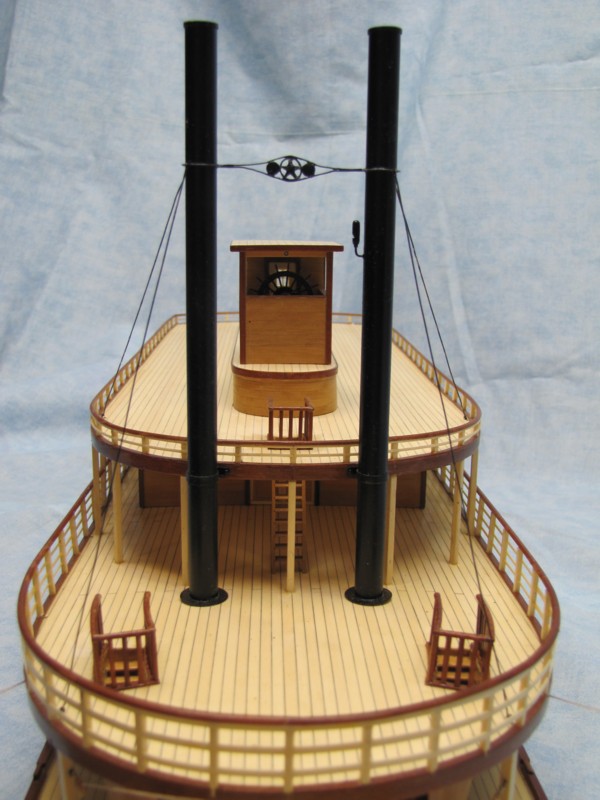

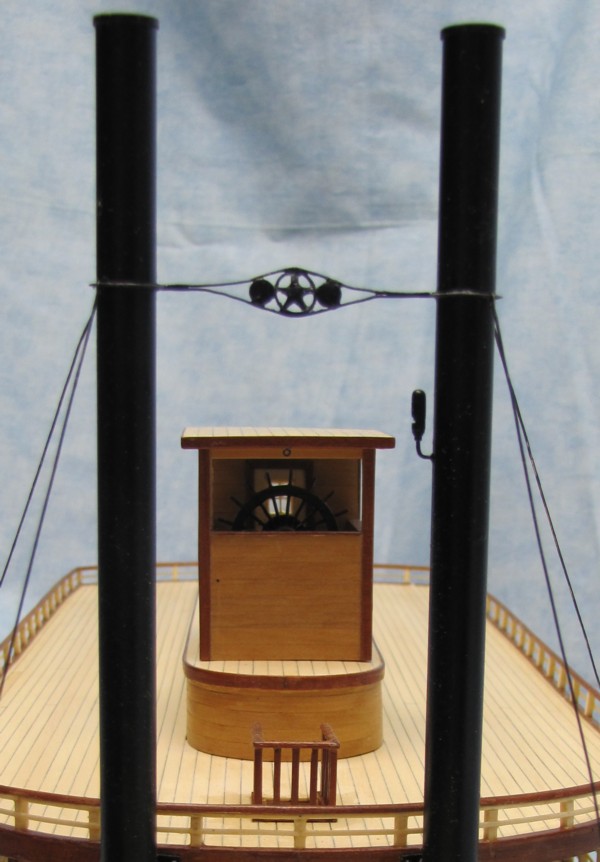

Smoke stacks, their support cables and the whistle.



Boilers and stacks

  Click on image to see high resolution picture.



Forward cabins and wheelhouse.

  Click on image to see high resolution picture.

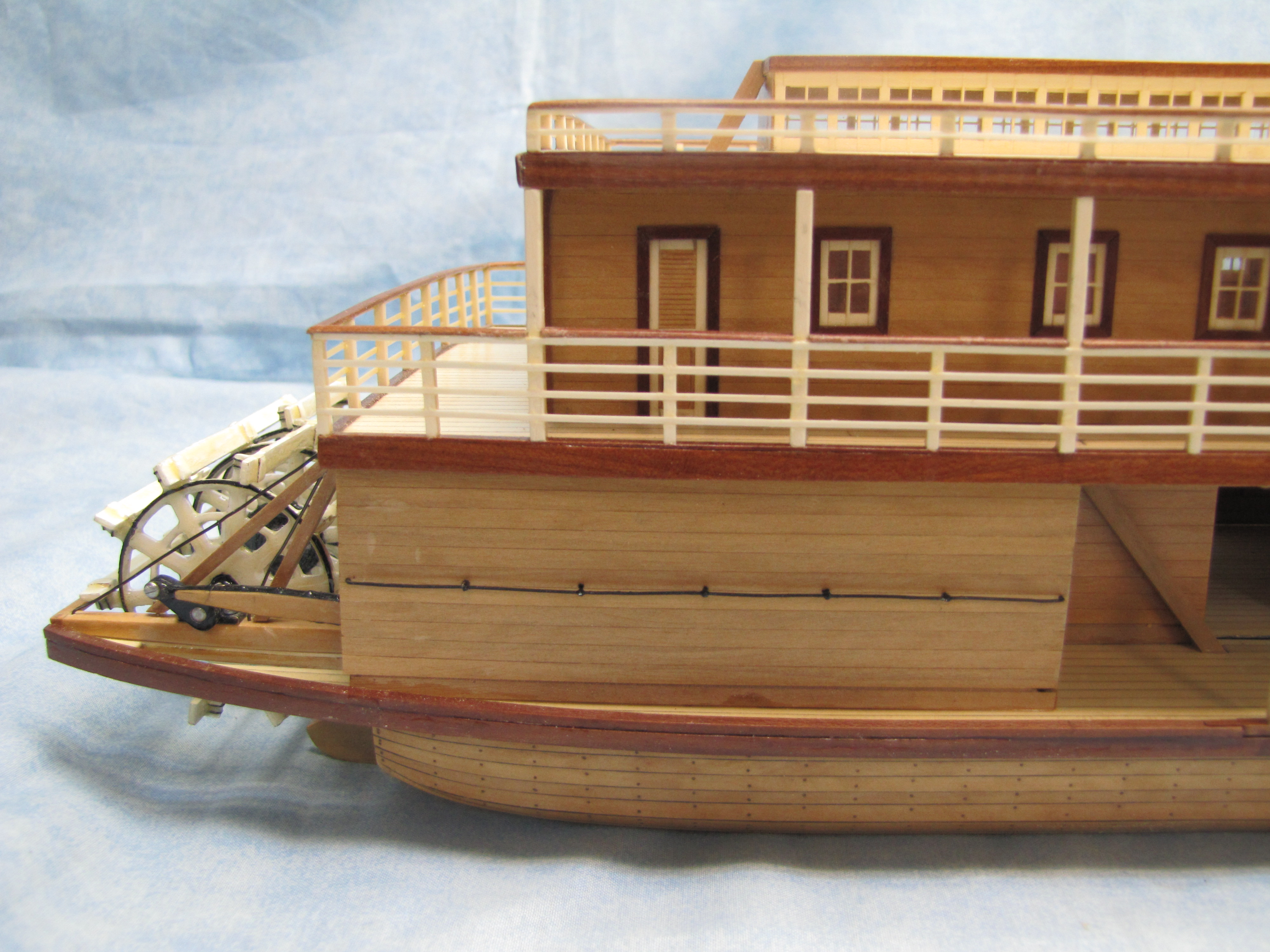

Aft cabins and paddle wheel.

  Click on image to see high resolution picture.

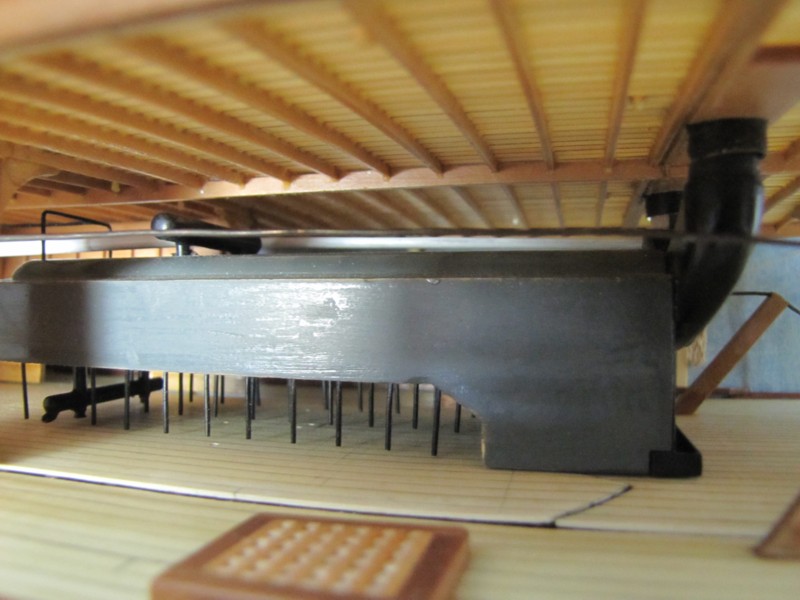

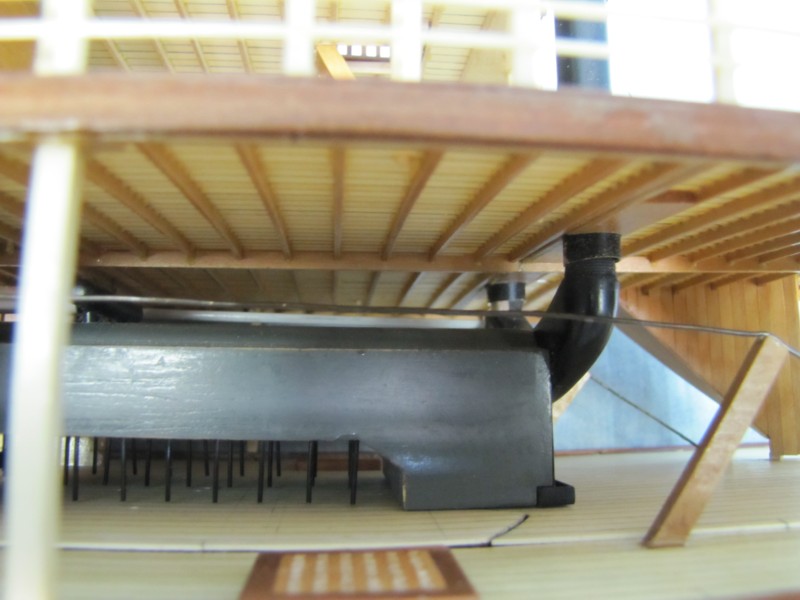

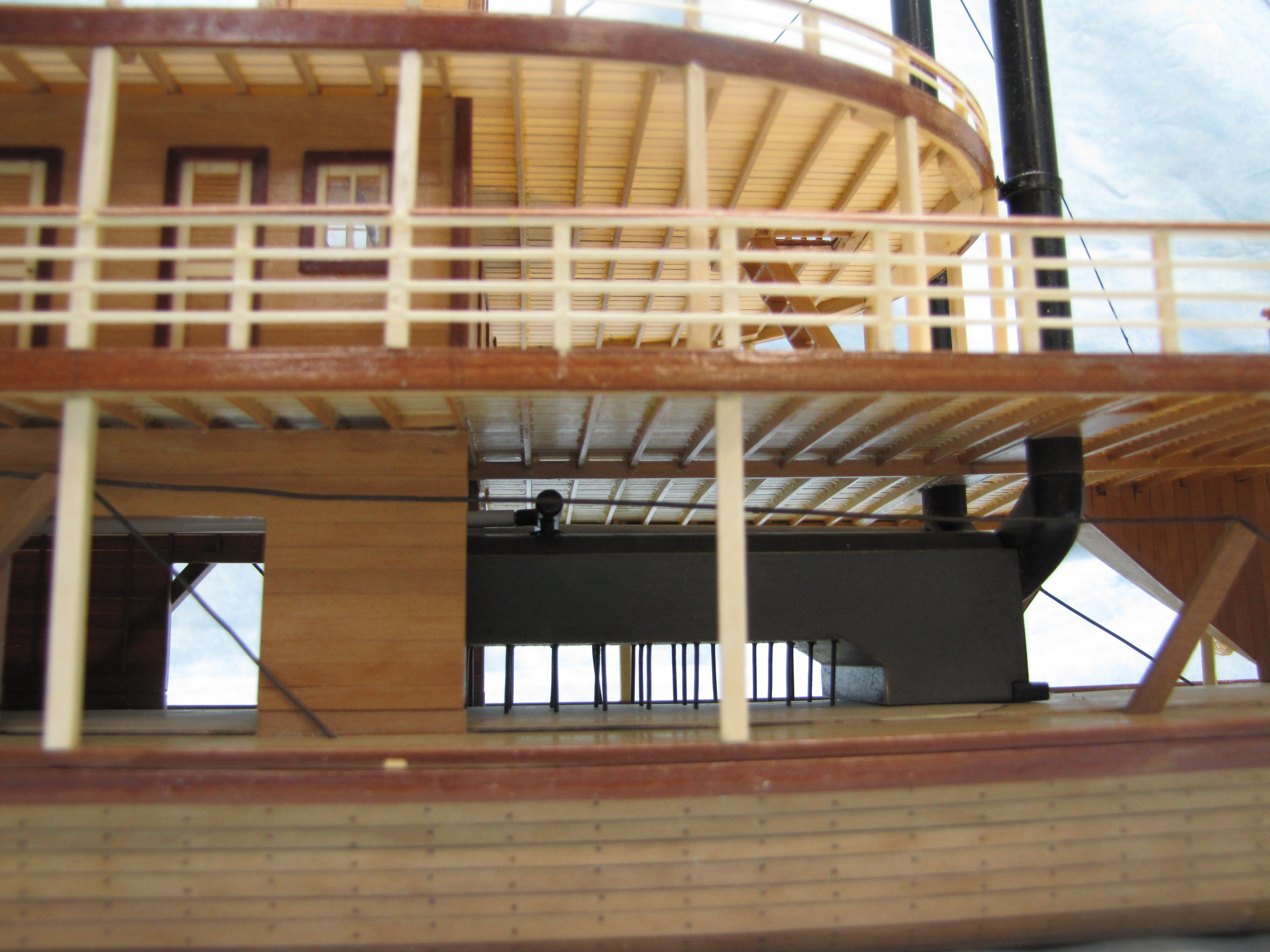

Underside of Boiler Deck.

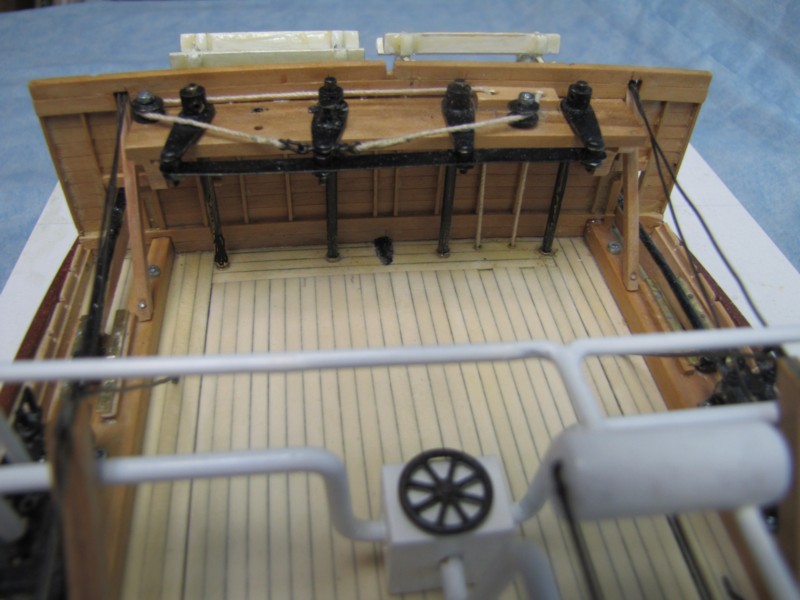

Rudder shafts and tiller ropes.

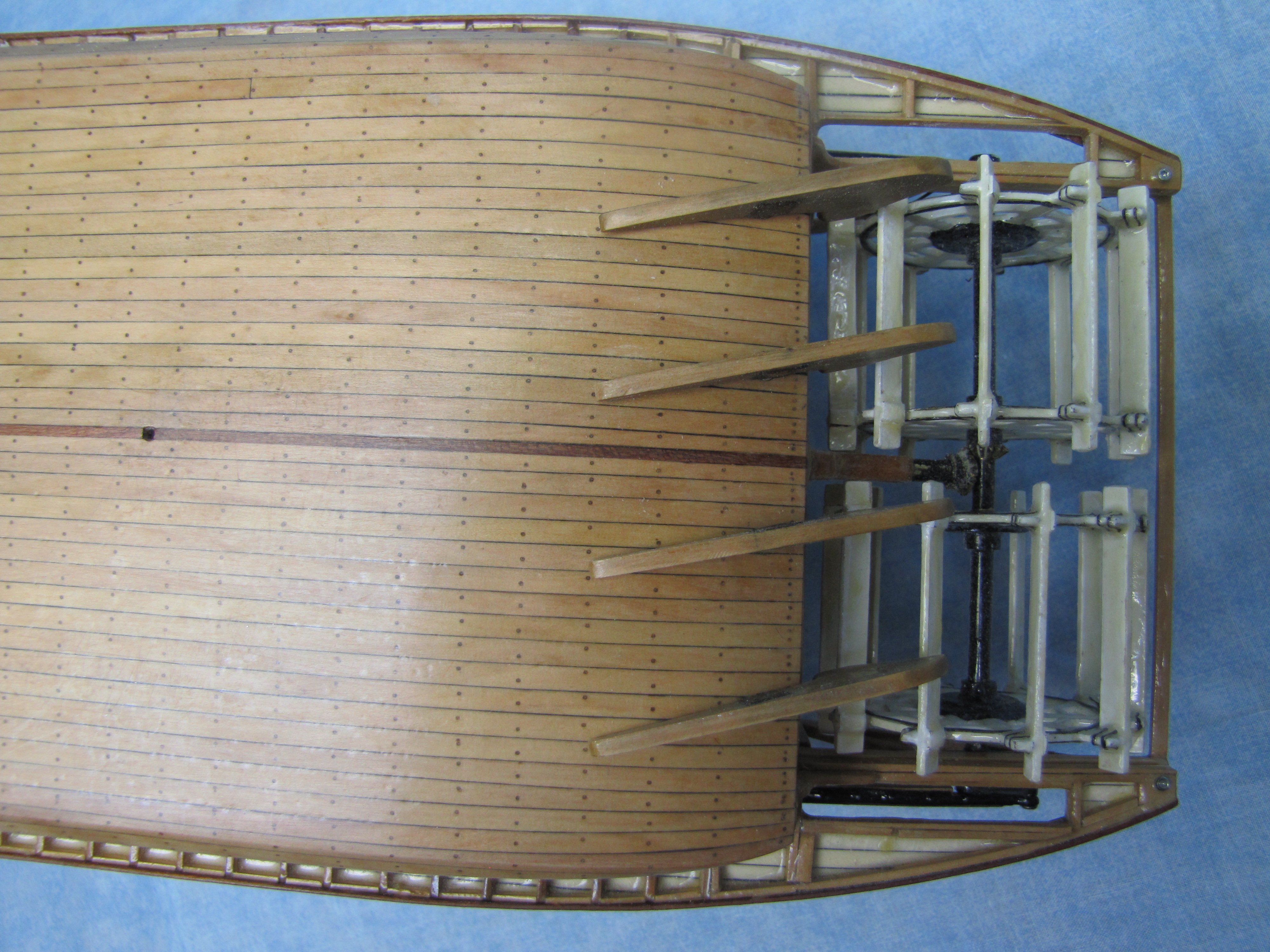

Stern portion of the hull, the rudders and paddle wheel.

   Click on image to see high resolution picture.

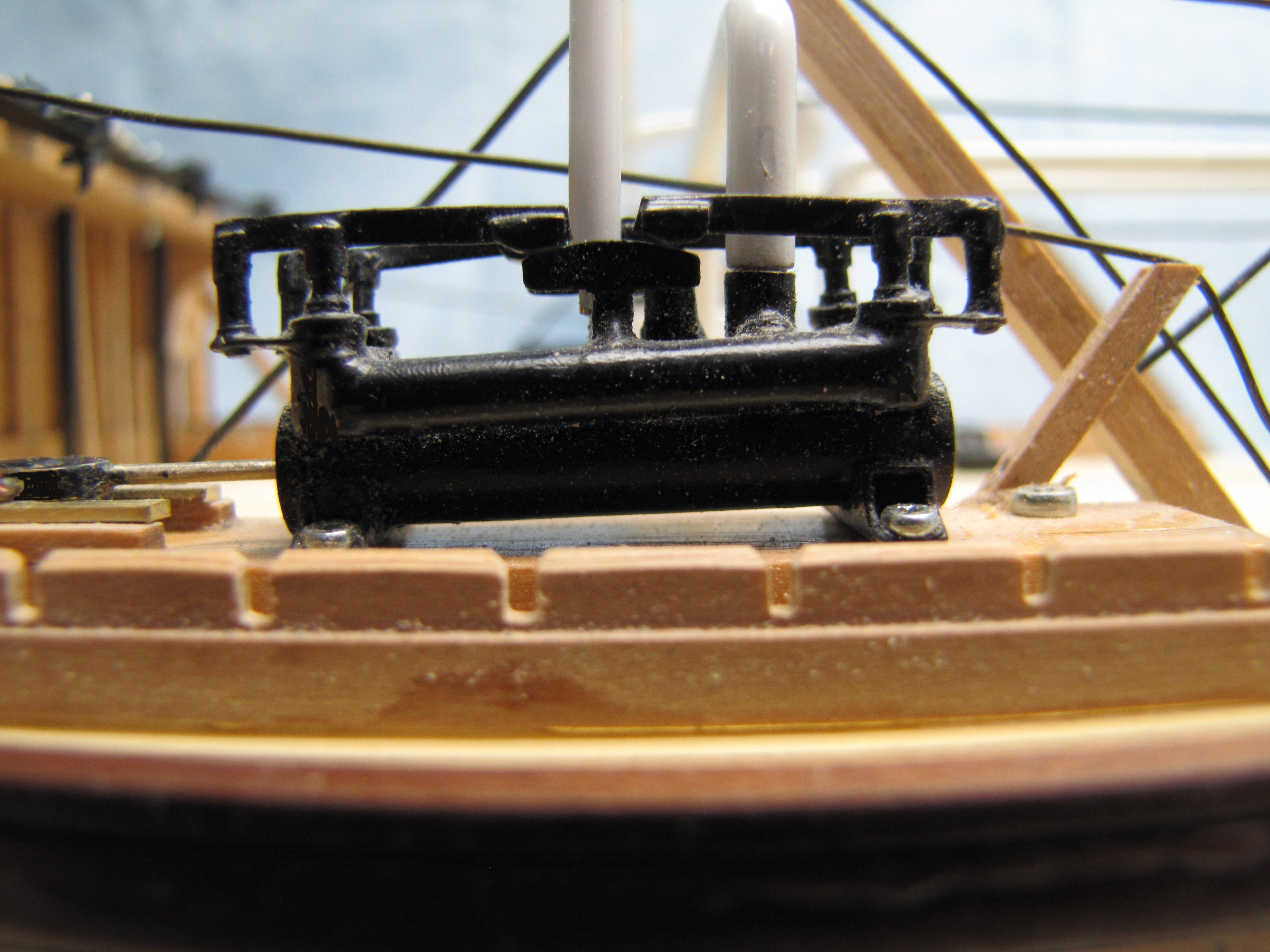

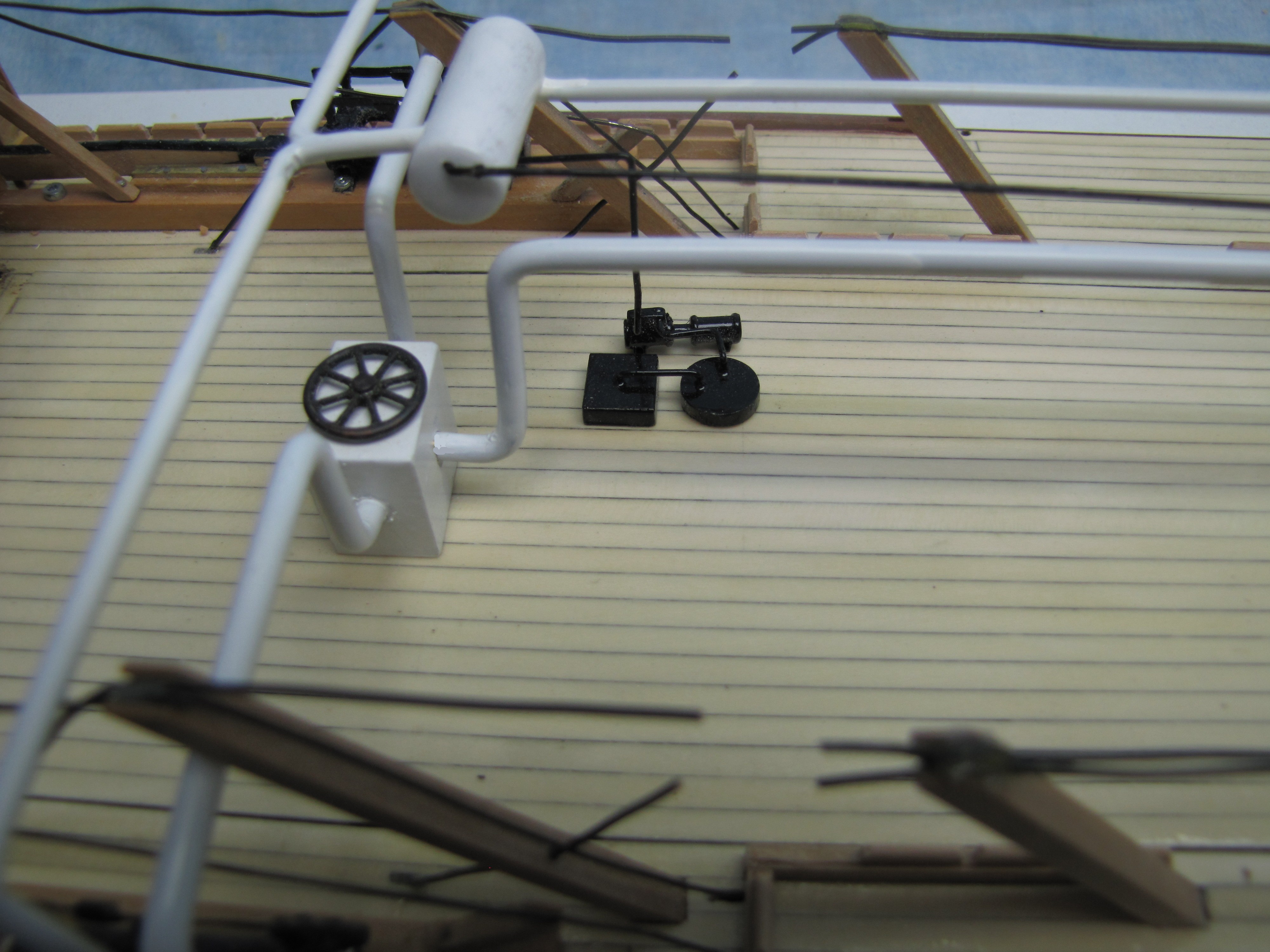

High pressure steam line from the boilers, the throttle and from it, steam lines to the engines.  The smaller white lines carry exhaust steam from the engines to a fresh water heater then on to the port stack where the used steam is exhausted.  The black lines carry fresh water to the heater then on to the boilers.  Fresh water is pulled from a water well that opens into the river through an opening in the hull.  A steam driven pump moves the water from the well to the heater.

  Click on image to see high resolution picture.

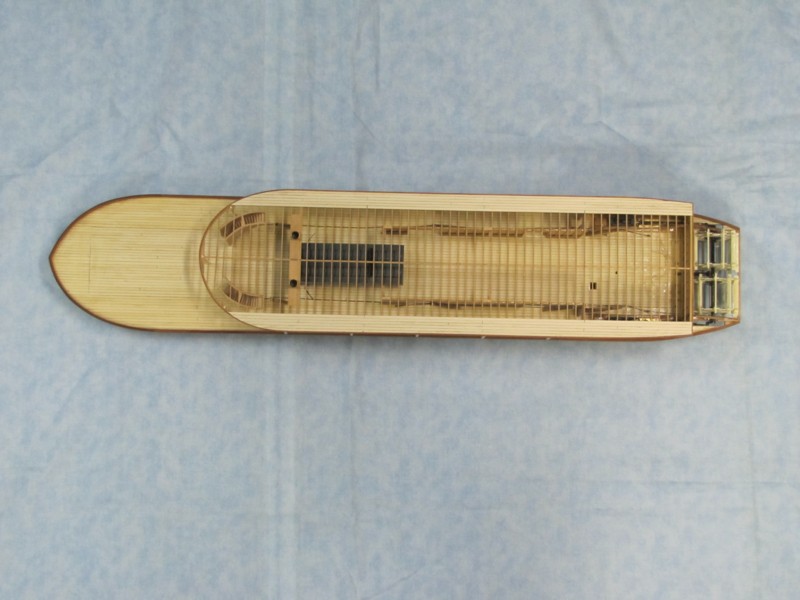

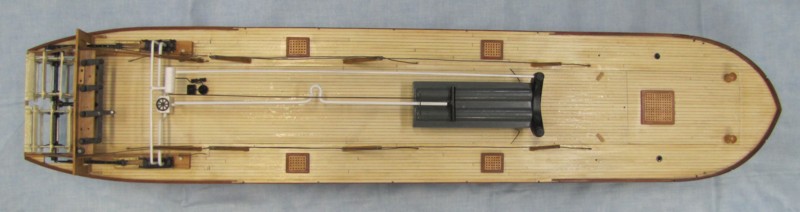

View of the exposed deck showing the boilers, steam lines and engines.



The starboard engine.

  Click on image to see high resolution picture.
